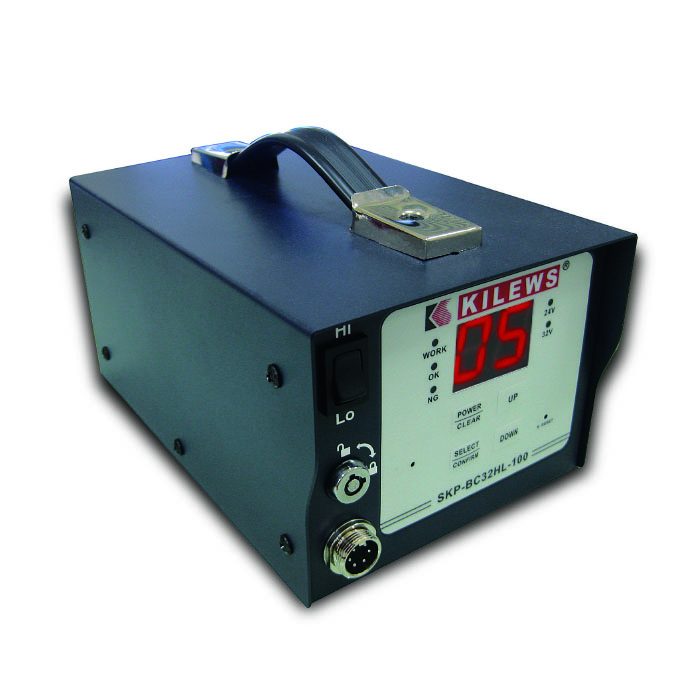

SKP-BC32HL-100(V3.0)
SKP-BC32HL-100(V3.0)
Product Spec
Model | SKD-BC32HL-100(V3.0) | |
Input Voltage | AC 100~240V 50/60HZ | |
Output Voltage | DC 32V / 24V 1.875A | |
Power Consumption | 60W | |
Count | 1~99 | |
Count method | Count-up/Count-down | |
Work with Sensor | ON/OFF | |
GATE Sensor | ON(2 Sensors) / OFF(1 Sensor) | |
Slow-start time adjustable | 0~9.9 seconds | |
Slow-Start speed adjustable | L0 : 100%, 35%~85% L1~L9 Rated speed | |
Running Time Limit-LO | 0.00~9.99 seconds | |
Running Time Limit-HI | 0.0~9.9 seconds | |
Reminder Mode | ON/OF/FF/EF with LED and buzzer | |
Auto ZERO | ON / OFF | |
External inputs | Forward / Reverse / Disable / Confirm / Sensor / Clear | |
External outputs | ON /OFF | |
Screwdriver Control | HI / LO : Slow-Start | |

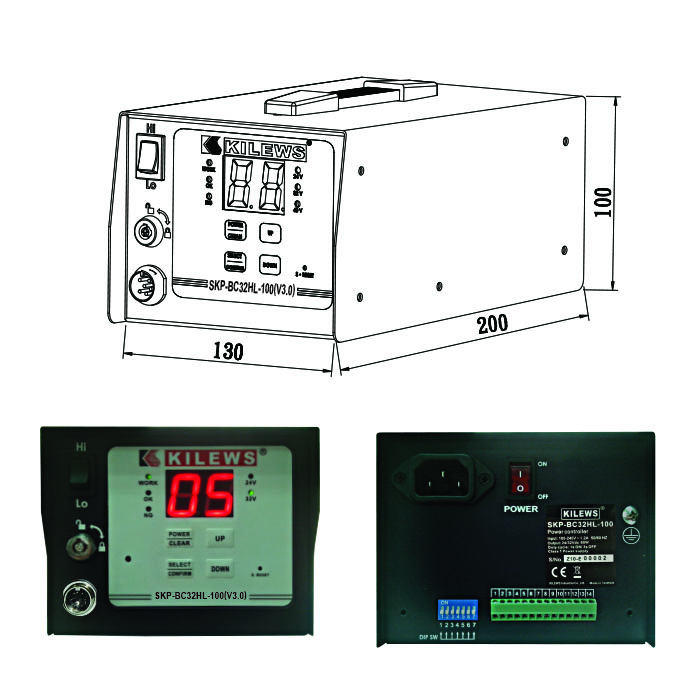

Outside Dimensions | 200X130X100(mm) | |
Weight(g) | 1.53 | |
Accessories | Power cordX1 KeyX2 | |
Remark | ||

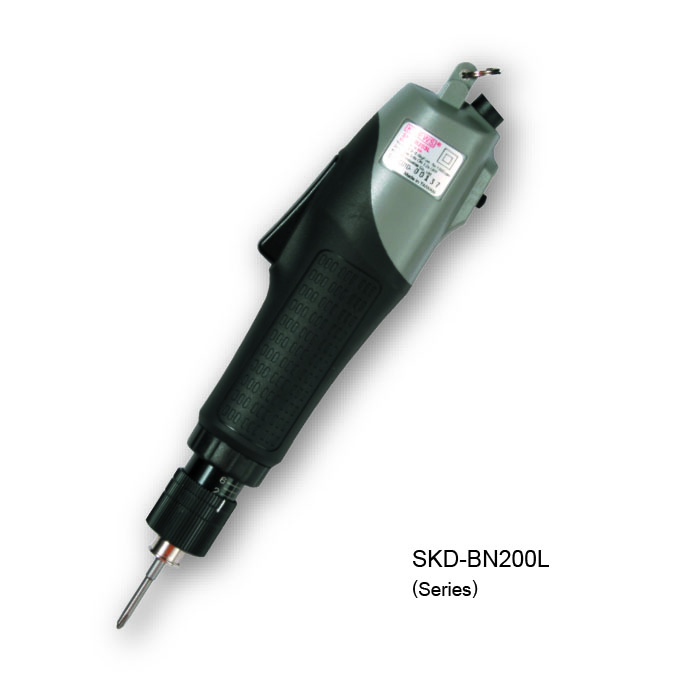

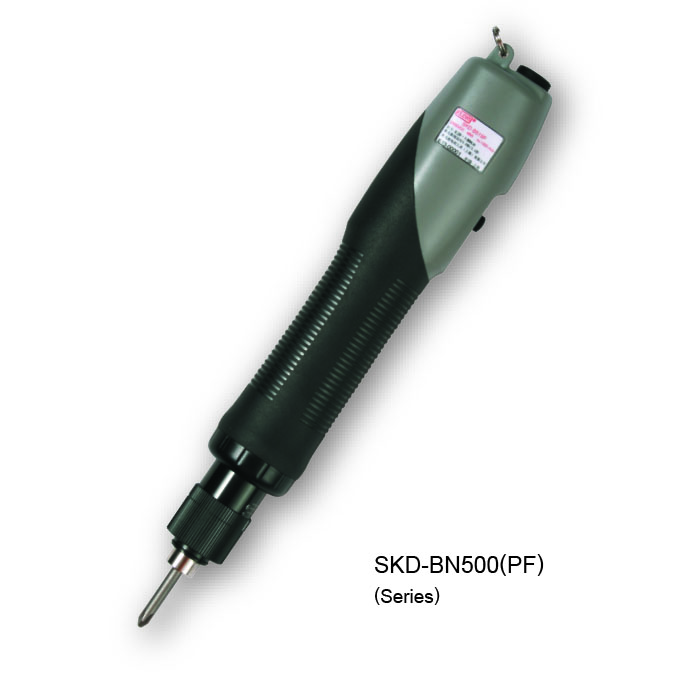

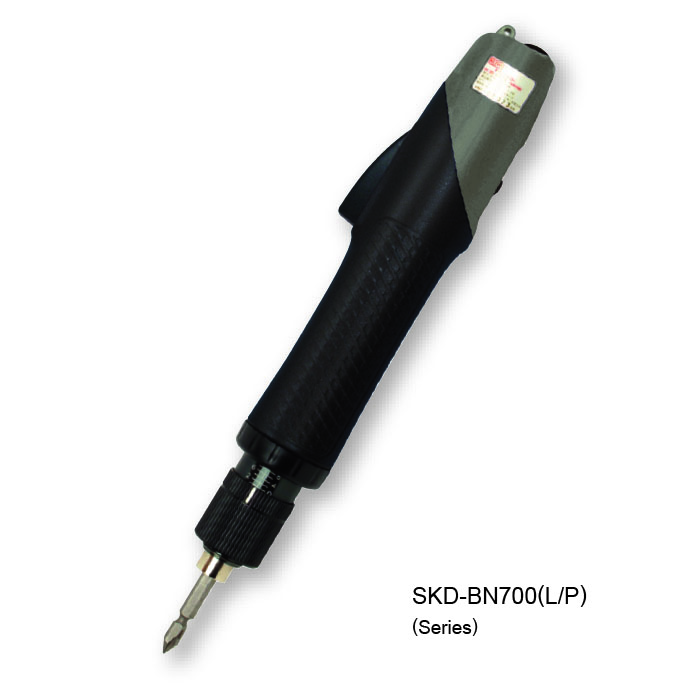

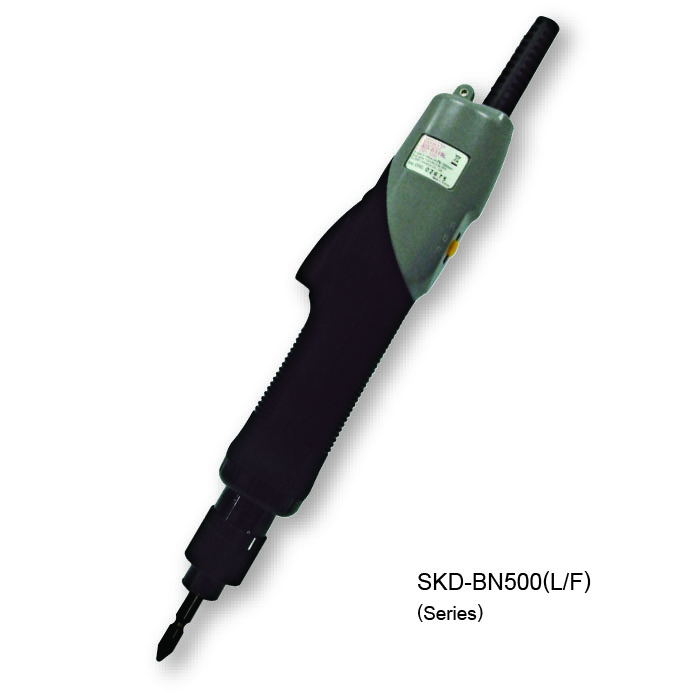

Applicable Models | SKD-BN200(Series) SKD-BN500(Series) SKD-BN7000(Series) |
