SKD-BN500 (VACUUM TYPE)Series

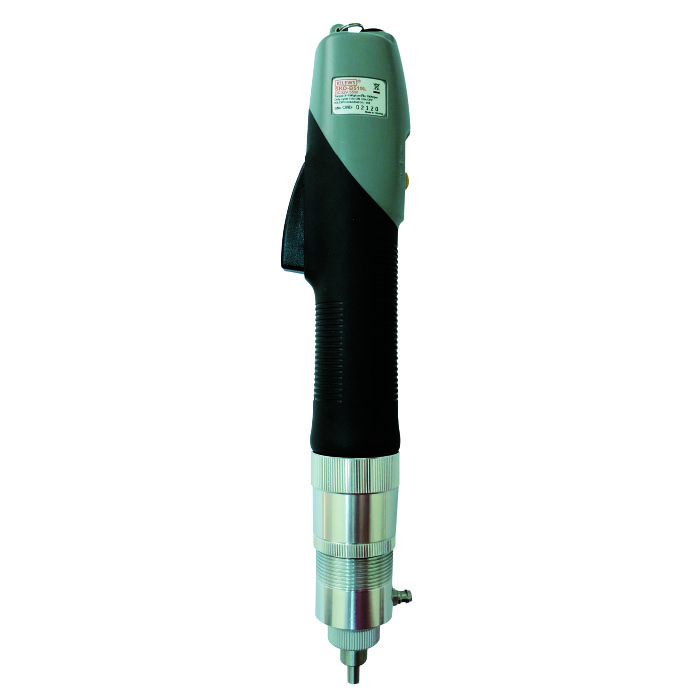

- Vacuum screwdriver was taking the series of SKD-BN200L/P as reference and being created by adding the vacuum head. The main purpose is sucking the non-magnetic screws, such as plastic screws / aluminum-made screws / stainless steel screws and any other screws that does not contain magnetic.

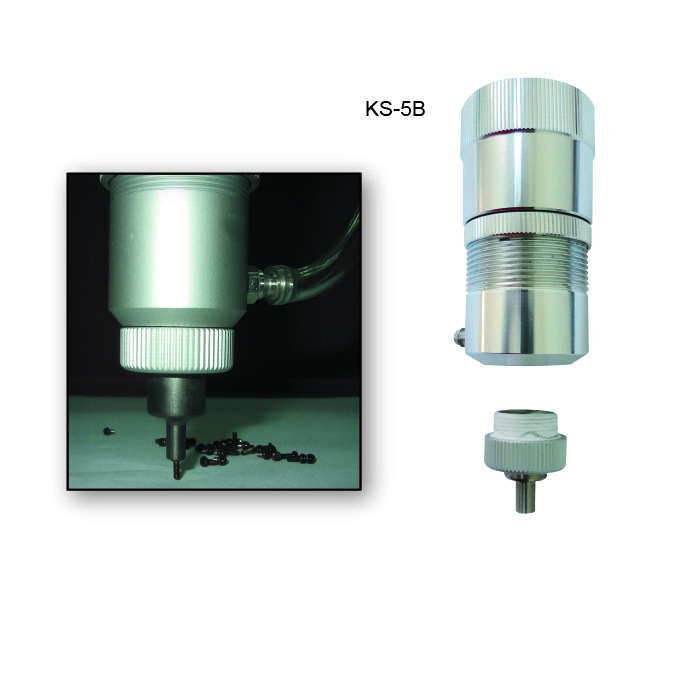

- Any type and specification of screws can be sucked which only need to replace the head to KS-2B

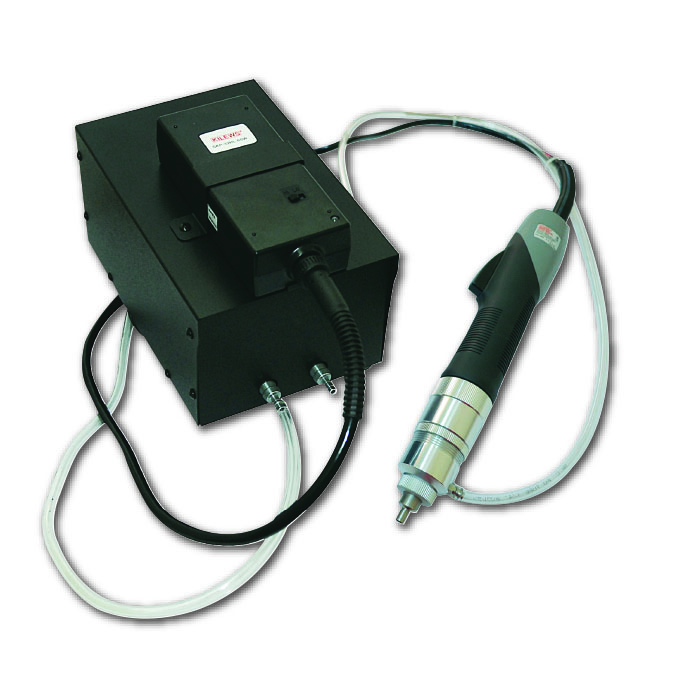

- The suction of vacuum pump is powerful; if the screws tray is using together, it will be more convenient and easy. The screws can be placed at the tray first and then sucked by the vacuum screwdriver.
- CE and ETL are optional
Specifications
Model | SKD-BN512L (VACCUM TYPE) | SKD-BN519L (VACCUM TYPE) | SKD-BN517LF (VACCUM TYPE) | SKD-BN512LF (VACCUM TYPE) | |||
Input Voltage | DC24V or DC32V | ||||||
Torque | (Kgf.cm) | 1.5~12 | 3~19 | 3~17 | 1.5~12 | ||
(Lbf.in) | 1.33~10.44 | 2.57~16.46 | 2.57~14.78 | 1.32~10.44 | |||
(N.m) | 0.15~1.18 | 0.29~1.86 | 0.29~1.67 | 0.15~1.18 | |||
Repeatable Torque Accuracy(%) | ±3% | ||||||
Torque Adjustment | StepLess | ||||||
Free Speed (r.p.m) | HI | 1000 | 1000 | 2000 | 2000 | ||
LO | 700 | 700 | 一 | 一 | |||
Screw Size Dia (mm) | Machine Screw | 1.6~3.0 | 2.3~3.5 | 1.6~3.0 | 1.6~3.0 | ||
Tapping Screw | 1.6~2.6 | 2.3~3.0 | 1.6~2.6 | 1.6~2.6 | |||
Power Consumption | 55W | ||||||
Weight(g) | 520 | ||||||

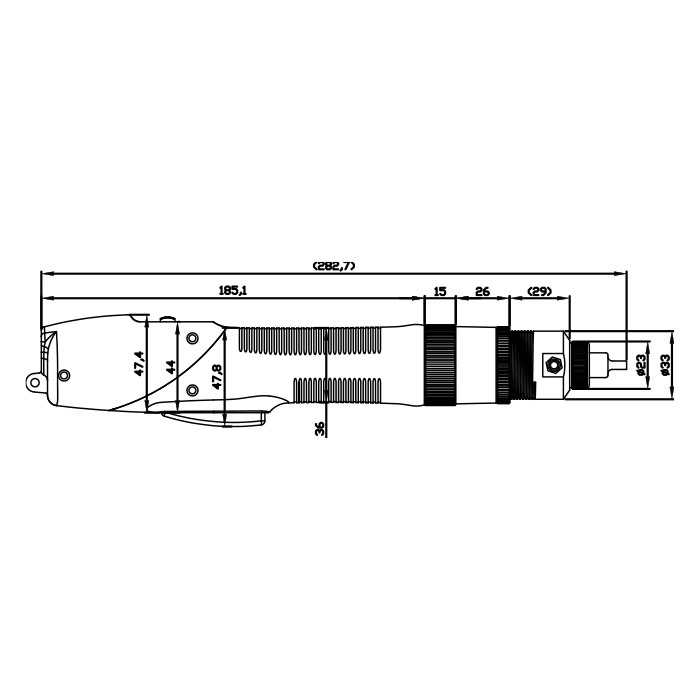

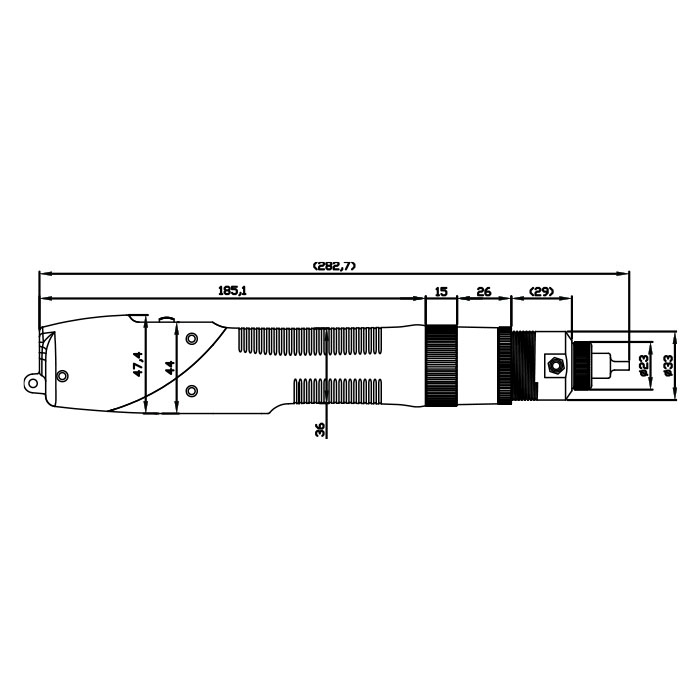

Length(mm) | 283 | ||||||
ESD(Anti-Static) | V(With Black housing) | ||||||
CE | V | ||||||
RoHS | V | ||||||
Power Controller | SKP-32BC-60W | SKP-32HL(6P) | |||||

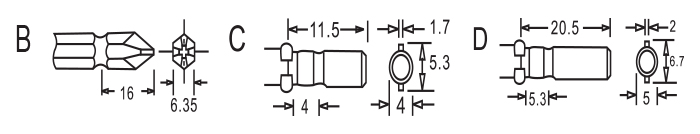

Bit Type |
