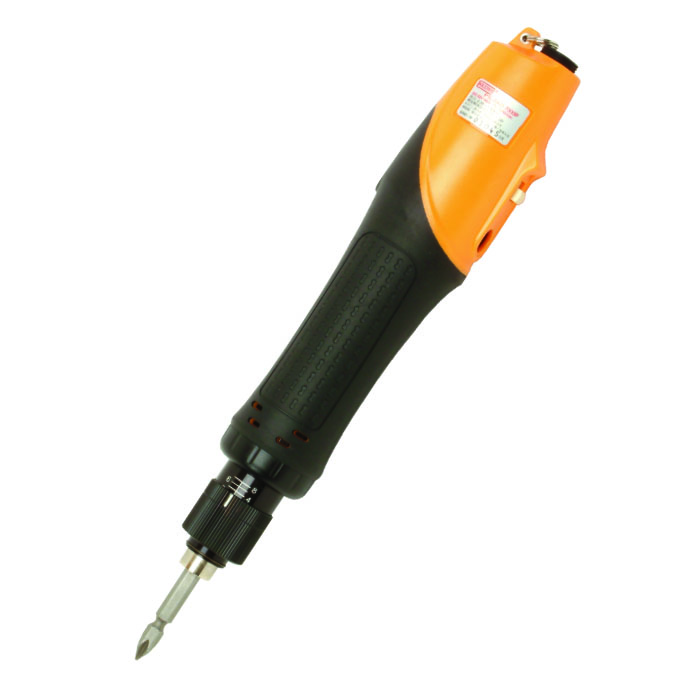

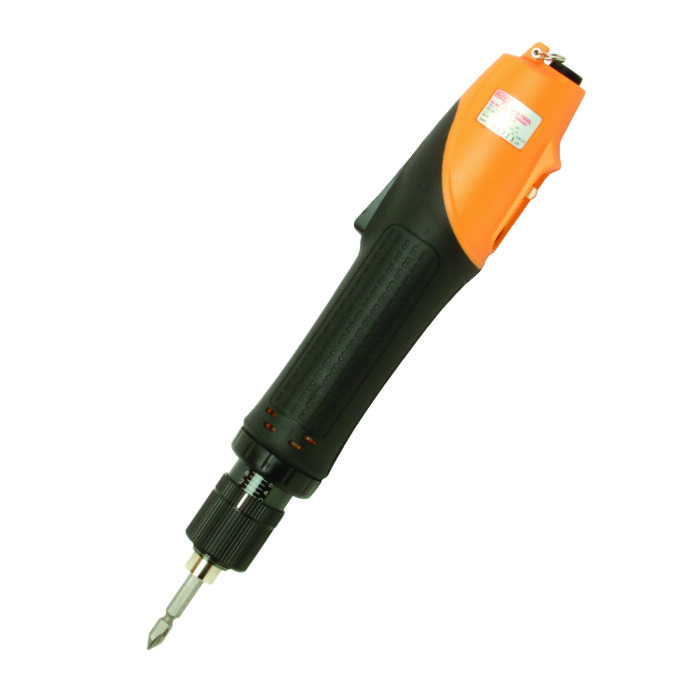

SKD-7000 Series

  • Low-voltage automatic clutch electric screwdrivers with power controllers, can keep long-time operation, high stability, no influence by fluctuated voltage.
  • Be operate with torque fixing ring (KC-2) most applied to office machines, PC peripherals.
  • High technology motor, made by extra strong magnet, fast start and low electric current. Fan and vent let motors fast heat emission, low temperature for successive using.
  • Clutch is made by alloy steel materials made in JAPAN, solid and endurance, fatigue-resistant, high stability and long lifespan.
  • Precise torque is able to set from small to large, range stepless, stable, fast speed, easy operation and high working efficiency.
  • Any screw and socket can be used. As fastening process reach pre-set torque, clutch will be automatically stopped as well.


Specifications

Model SKD-7000L SKD-7000P SKD-7200L SKD-7200P SKD-7800L SKD-7800P SKD-7800LF SKD-7800PF
Input Voltage DC24V or DC32V DC32V
Power Consumption 50W

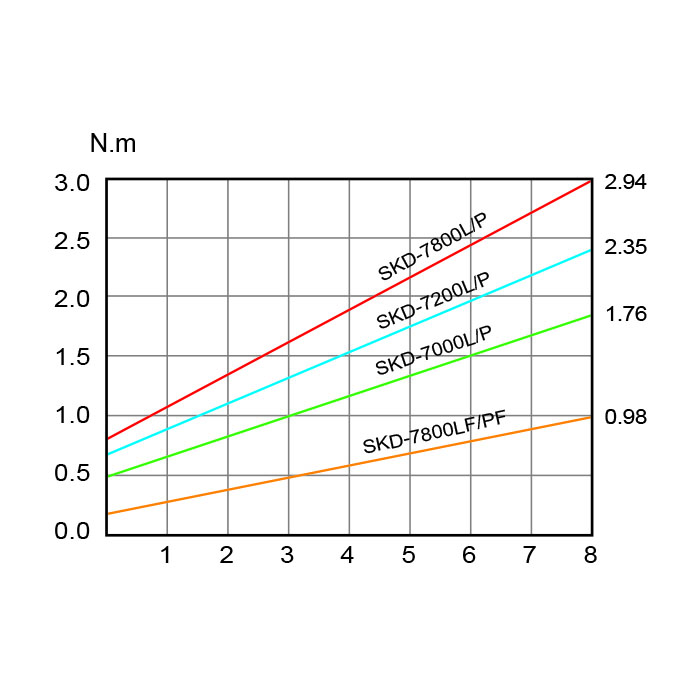

Torque (Kgf.cm) 5~18 7~24 8~30 2~10
(Lbf.in) 4.34~15.58 6.11~20.8 6.9~26.02 1.77~8.67
(N.m) 0.49~1.76 0.69~2.35 0.78~2.94 0.2~0.98
Repeatable Torque Accuracy(%) ±3%
Torque Adjustment Stepless
Free Speed (r.p.m) HI 1000 750 530 2000
LO 700 520 350
Screw Size Dia (mm) Machine Screw 2.0~3.5 2.6~4.0 3.0~5.0 2.0~3.0
Tapping Screw 2.0~3.0 2.6~3.5 3.0~4.0 2.0~2.6
Weight(g) 600

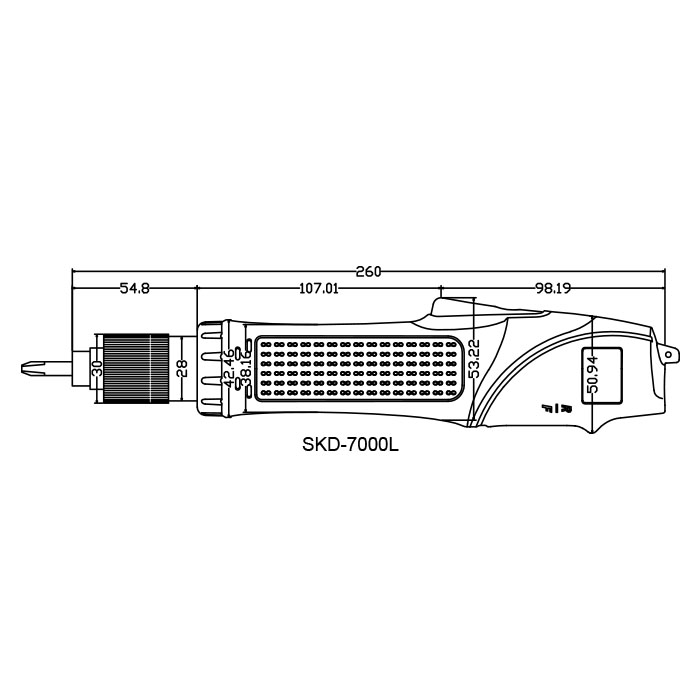

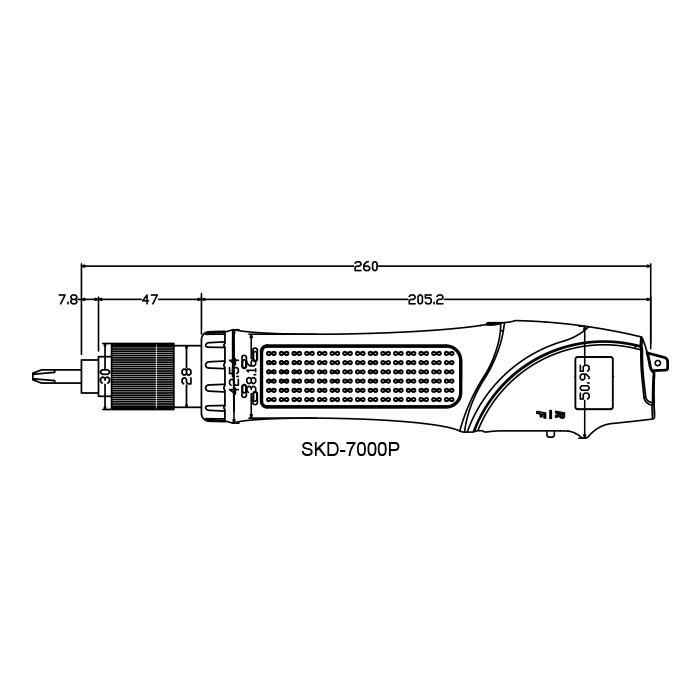

Length(mm) 260
ESD(Anti-Static)                                  V(With Black housing)
CE V
RoHS V
Power Controller SKP-32HL-60W

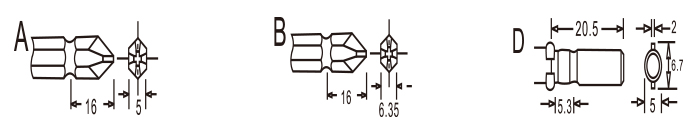

Bit Type
