- Output voltage: DC24V and DC32V two selections.
- Power switch: ON/OFF indicator. Two kinds of output voltage Hi & Lo.

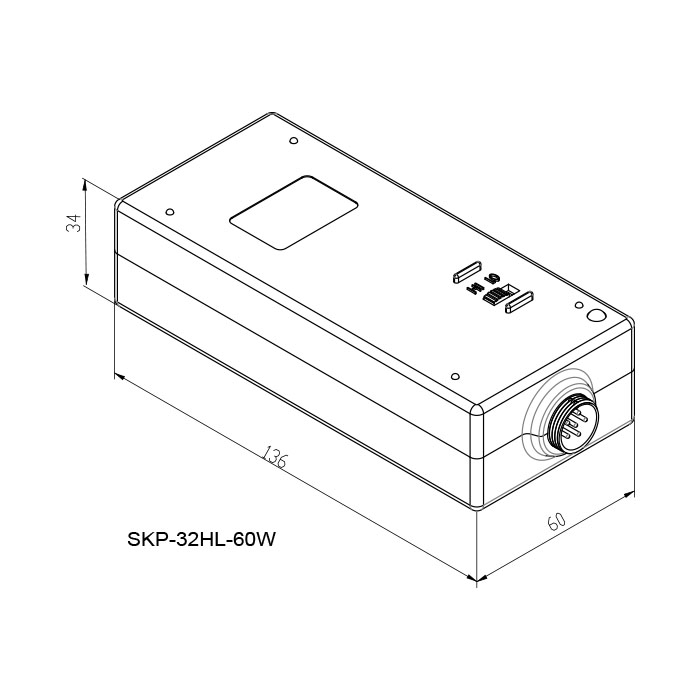

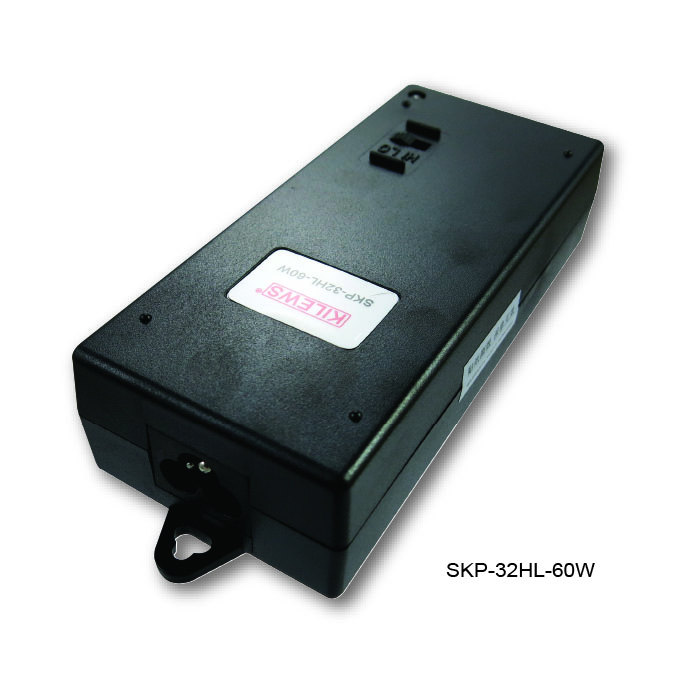

- SKP-32HL-60W is a kind of intelligence power controller. Input 100V-240V by AC power source allows.
- SKP-32HL-60W has two output voltage levels, 32V and 24V, for user to choose.
- Please set the torque scale below 4 for operation when the voltage of SKP series is set as Lo or below 32V.
- Equipped with grounding device for eliminating static shock and anti-EMC.
- Support variant plug type for different country.
|Input Voltage||AC100~240V 50/60Hz|
|Output Voltage||Low DC 24V / Hi 32V|
|Output Capacity||2A Max|
|AC Cord Length||2M with ground|
|Applicable Models||One screwdriver SKD-2300L, SKD-2200L, SKD-2000L, SKD-5200L, SKD-5200P, SKD-5300L, SKD-5300P, SKD-5300LF, SKD-5300PF, SKD-7000L, SKD-7000P, SKD-7200L, SKD-7200P, SKD-7800L, SKD-7800P, SKD-7800LF, SKD-7800PF, SKD-8300P, SKD-8400P, SKD-8500P, SKD-8300PF, SKD-8300L, SKD-8400L, SKD-8500L, SKD-8300LF|
