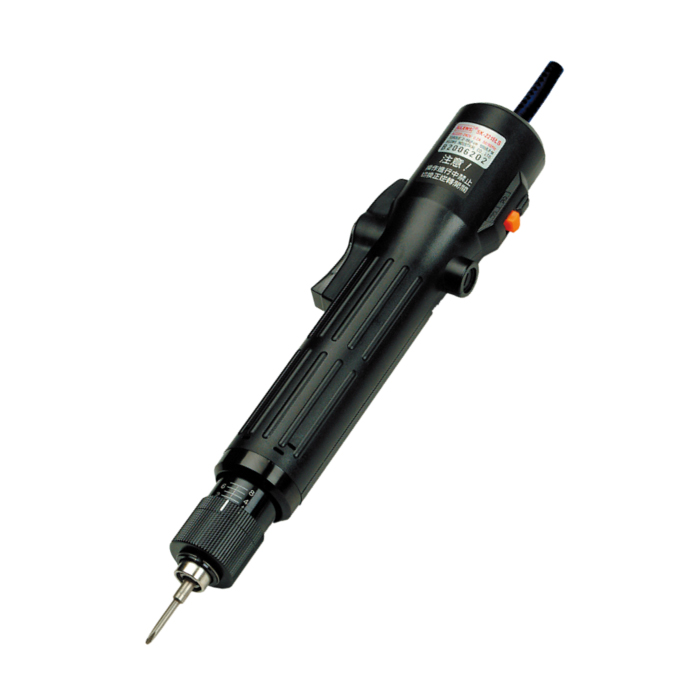

SK-2 Semi-Automatic Series

SK-2 Series- Low torque AC-type

  • AC Plug; no adapter needed.
  • Inner dual insulator which is conforming to the international safety standard. 100% safe, light and handy, easy to use and appearance fits in with ergonomics logic.

  • Precise torque. It is adjustable from small to large but speed stays constant. The rotation speed is fast and also light and handy. Boost productively.

  • Best choice for general electronic appliances, such as lamps, small home appliances, toys and etc.
SK-2 Series- Medium and High AC-type

  • Torque range is from 5-45kgf.cm., Torque accuracy±5%.
  • Easy to operate and able to improve production efficiency.
  • Suitable when assembling for the out shell screws of general home electric appliances.
  • The best choice when composing the tapping screws under 5mm diameter.


Product Spec Specifications

Model SK-205LS SK-215LS SK-2205LS SK-2215LS
Input Voltage AC110~120V 50/60Hz AC220~240V 50/60Hz
Torque (Kgf.cm) 0.5~7 2~15 0.5~7 2~15
(Lbf.in) 0.44~6.10 1.77~13 0.44~6.10 1.77~13
(N.m) 0.05~0.69 0.2~1.47 0.05~0.69 0.2~1.47
Repeatable Torque Accuracy(%) ±3%
Torque Adjustment Stepless
Free Speed (r.p.m) 1100 1100 1000 1000
Power Consumption 0.3A 0.3A 0.2A 0.2A
Screw Size Dia (mm) Machine Screw 1.6~3.0 2.0~4.0 2.6~4.0 2.0~4.0
Tapping Screw 1.4~2.0 2.0~3.0 2.6~3.5 2.0~3.0
Weight(g) 480
Length(mm) 230
ESD(Anti-Static)
UL(Anti-Static)
CE
RoHS V
Bit Type

Specifications

Model SK-2125LS SK-2135LS SK-2145LS SK-2125LSF SK-2225LS SK-2235LS SK-2245LS SK-2225LSF
Input Voltage AC110~120V 50/60Hz AC220~240V 50/60Hz
Torque (Kgf.cm) 5~25 10~35 15~45 5~18 5~25 10~35 15~45 5~18
(Lbf.in) 4.34~21.68 8.67~30.35 13~39.02 4.34~15.58 4.34~21.68 8.67~30.35 13~39.02 4.34~15.58
(N.m) 0.49~2.45 0.98~3.34 1.47~4.41 0.49~1.76 0.49~2.45 0.98~3.34 1.47~4.41 0.49~1.76
Repeatable Torque Accuracy(%) ±5%
Torque Adjustment Stepless
Free Speed (r.p.m) 1000 830 550 2000 1000 700 500 1000
Power Consumption 0.3A 0.3A 0.3A 0.3A 0.2A 0.2A 0.2A 0.2A
Screw Size Dia (mm) Machine Screw 2.6~5.0 2.6~5.0 3.0~6.0 2.0~4.0 2.6~5.0 2.6~5.0 3.0~6.0 2.0~4.0
Tapping Screw 2.6~3.5 2.6~4.0 3.0~5.0 2.0~3.5 2.6~3.5 2.6~4.0 3.0~5.0 2.0~3.5
Weight(g) 600
Length(mm) 264
ESD(Anti-Static)
UL(Anti-Static)
CE
RoHS V
Bit Type
