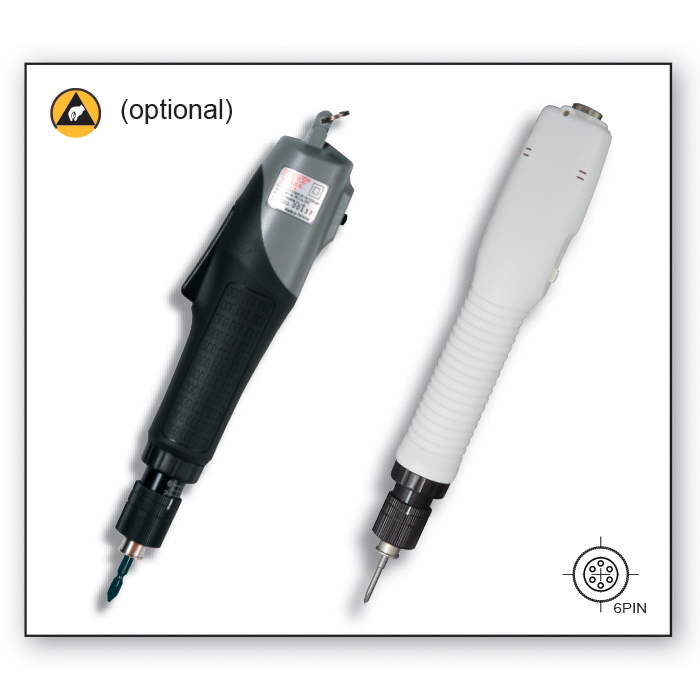

SK-BNK200 Series

  • Adopting High-Functional Brushless Motor, marvelous lifespan and strong durability to repair and maintenance almost needless.
  • Smaller size, light weight, low noise-pollution, fashionable design, high stability and easy operation motor which gives the benefit of longer working-time. (3 years warranty on motor)
  • Brushless Motor has more stable torque output; it is best to fit for operating in clean-room circumstance and no worry of pollution will be arisen.
  • Best tool to assemble Watch, Laptop, Digital Camera, DVD Player, Cell Phone, Communication Equipment and High tech Products which need to be assembled in clean-room.
  • CE and ETL are optional



Specifications

Model SKD-BNK203L SKD-BNK207L SKD-BNK210L/P
Input Voltage DC24V or DC32V
Power Consumption 25W

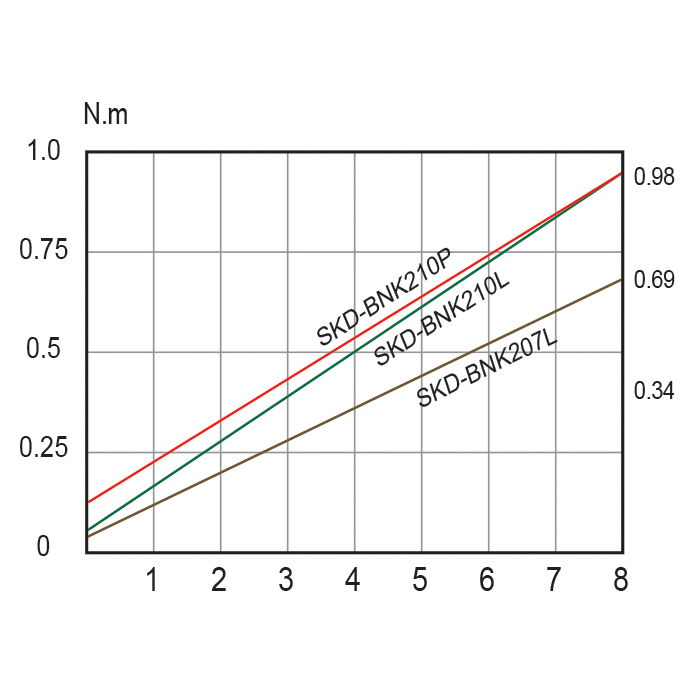

Torque (Kgf.cm) 0.2~3.5 0.5~7 L:1~10 / P: 2~10
(Lbf.in) 0.18~3.01 0.44~6.10 L:0.89~8.67 / P:1.77~8.67
(N.m) 0.02~0.34 0.05~0.69 L:0.10~0.98 / P:0.2~0.98
Repeatable Torque Accuracy(%) ±3%
Torque Adjustment StepLess
Free Speed (r.p.m)

HI 1000 1000 1000
LO 700 700 700
Screw Size Dia
(mm)
Machine Screw 1.0~2.3 1.4~2.6 1.6~3.0
Tapping Screw 1.0~2.0 1.4~2.3 1.6~2.6
Weight(g) L:330  P:310

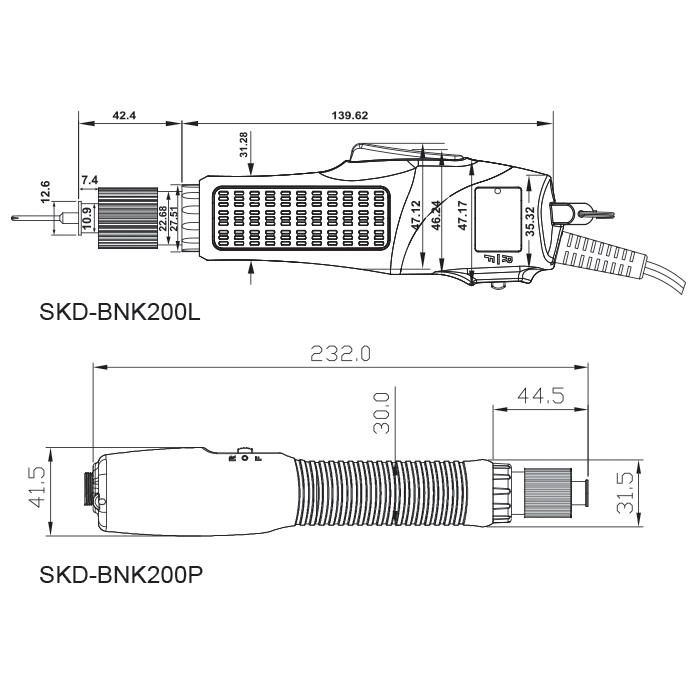

Length(mm) L:185  P:230
ESD(Anti-Static)                                  V(With Black housing)
ETL V
CE V
RoHS V
Bit Type                 B      C
Model SKP-12HL
Input Voltage AC100~240V 50/60Hz
Output Voltage Lo DC9V / Hi DC12V
Capacity 2.5A
Size 105X50X35
Weight 144.5g
Cord Length 2M
