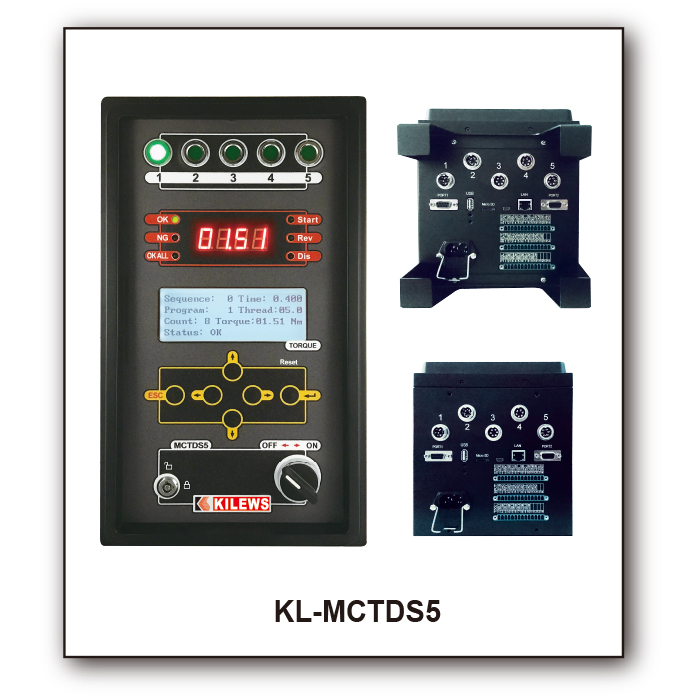

KL-CTDS
Product Features
- 4 digits and 7 Segment of torque display
- 24x4 LCM display settings
- Password and key control to avoid operator adjusting settings
- Counting preference set up (count up and count down)
- Slow start time 0.0~9.9 sec
- Slow start speed (10%~90%,L1 ~ L9)
- Workpiece in place sensor (on/off)
- Set up fastening thread range
- I/O signal (Optocoupler)
- RS-232 interface for data output, storage and use with barcode scanner
- 99 data storage
- Set up fastening time range
- Set up fastening torque range
- Error code
- Auto learning
- Change torque unit
- Offset setting
- External start
- External reverse
- External disable tool
- External confirm
- Slot for SD memory card
- Built-in power
- Ethernet
- 99 sequences set up
Spectifications
| Model | KL-CTDS |
| Input voltage | AC 100V ~ 240V |
| I/O Output voltage | DC24V 50mA/ 12V 100mA |
| Count | 1-99 |
| Count method | Count-up/ count-down |
| Continued induction switch (sensor) | ON/OFF |
| Sensor switch mode | ON (2 sensors)/ OFF (1 sensor) |
| Slow start setting time | 0~9.9 seconds |
| Slow start speed setting | L0:100%, 10%~90% L1~L9 Rated speed |
| Dedection stop time | 0.00~9.99 seconds |
| Dedection torque value | 0.0~550.0 kgf.cm |
| Dedection screw thread number | 0.0~999.9 |
| External connection input | Forwarder/ reverse/ disable/ confirm |
| External connection output | OK/ NG/ OK ALL/ STOP |
| Serial interface | RS-232x2 |
| Assembly management | KL-DAS/ KL-AMS |

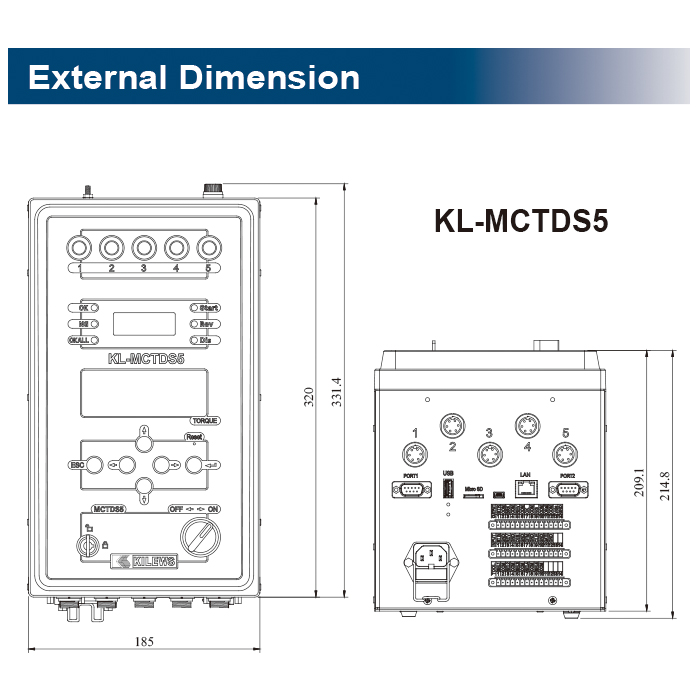

| External dimensions | 185x320x209 (mm) |
| Weight (g) | 4200g |
| Accessories | Power cablex1/ Keyx2 |
| Applicable models | SKD-BNK200/500/800/900 series |
| SKD-RBNK series | |
| SKD-TBNK series |
