KL-CTDS

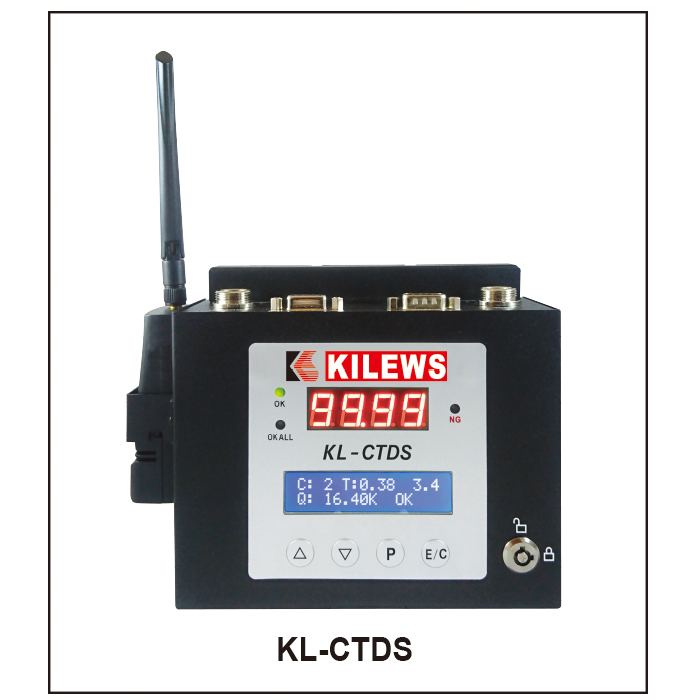

Smart Industrial Torque Display

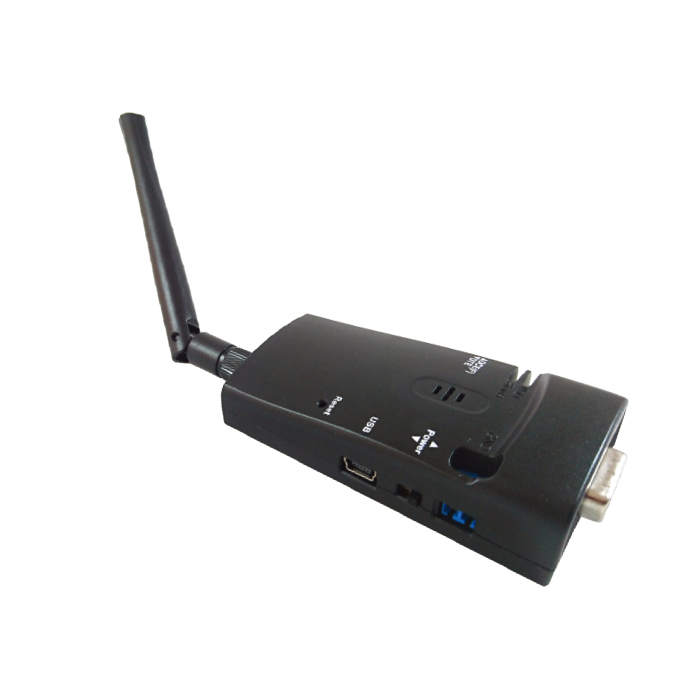

In the era of Industry 4.0, assembly date collection and integration is becoming a must. In order to meet market demands, Kilews’s latest invention KL-CTDS is able to display tightening torque, output tightening torque, output tightening status, storage tightening torque and together with error proof functions. KL-CTDS is also able to prevent errors from tightening torque, tightening number of threads, and tightening time. With various I/O, KL-CTDS can be connected to your PLC and integrated with your automation equipment and output assembly status instantly to your server or private could by Ethernet or WIFI for traceability.
![](img/product/kilews/smart-products/KL-CTDS-1-1.jpg)
![](img/product/kilews/smart-products/KL-CTDS-1-2.jpg)
![](img/product/kilews/smart-products/KL-CTDS-1-3.jpg)
Spectifications
Model | KL-CTDS |
Input voltage | DC32V/40V |
I/O Output voltage | DC24V 50mA/ 12V 100mA |
Count | 1-99 |
Count method | Count-up/ count-down |
Continued induction switch (sensor) | ON/OFF |
Sensor switch mode | ON (2 sensors)/ OFF (1 sensor) |
Slow start setting time | 0~9.9 seconds |
Slow start speed setting | L0:100%, 10%~90% L1~L9 Rated speed |
Dedection stop time | 0.00~9.99 seconds |
Dedection torque value | 0.0~550.0 kgf.cm |
Dedection screw thread number | 0.0~999.9 |
External connection input | Forwarder/ reverse/ disable/ confirm |
External connection output | OK/ NG/ OK ALL/ STOP |
Serial interface | RS-232x2 |
Assembly management | KL-DAS/ KL-AMS |

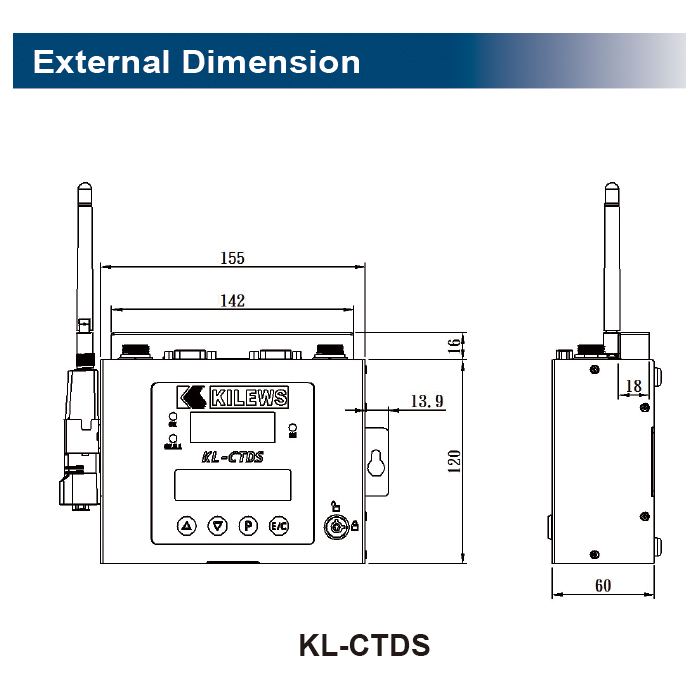

External dimensions | 155x120x60 (mm) |
Weight (g) | 622.5g |
Accessories | Power cablex1/ Keyx2 |
Applicable models | SKD-BNK200/500/800/900 series |
SKD-RBNK series | |
SKD-TBNK series |
Product Features
- 4 digits and 7 segment of torque display
- 16x2 LCM display settings
- Password and key control to avoid operator adjusting settings
- Counting preference set up (count up and count down)
- Slow start time 0.0-9.9sec
- Slow start speed (10%~90%, L1~L9)
- Workpiece in place sensor (on/off)
- Set up fastening thread range
- I/O signal (optcoupler)
- RS-232 interface for data output, storage and use with barcode scanner
- 99 data storage
- Set up fastening time range
- Set up fastening torque range
- Error code
- Auto learning
- Change torque unit
- Offset setting
- External start
- External reverse
- External disable tool
- External confirm
