BATTERY SPECS FOR KILEWS IMPACT SUT-OFF CORDLESS SCREWDRIVER

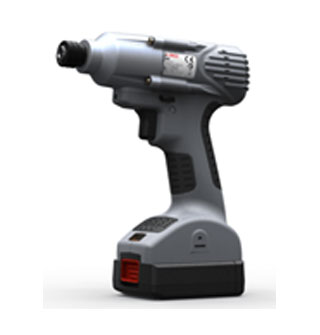

Microntech recently introduced Intelligent shutoff Impact Screwdriver SKC-PTM series Torque Range as 5N.m~50N.m, 20Nm ~70Nm & 20N.m~100N.m. Kilews Cordless Tools use super performance Li-ion battery having durable lifetime. Remote control setting, Screw counting function, Multi-steps torque adjustment (Force/Impacts), Error Detectable of cross threaded/Stripped & double hit detection.

Specs of battery-

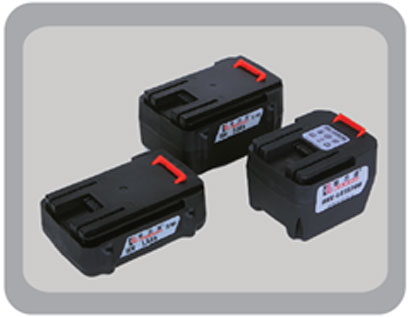

Applicable battery for SKC-PTM (impact shut-off) series are SKC-LB1425, SKC-LB1025M, and charger SKC-P50W, SKC-P70W. These batteries use Japanese high performance Li-ion battery, with built in protection function to prevent from overcharge and over discharge. Battery ID identification, which only allows original charge station to recharge the battery to secure battery safety and extend battery lifetime. Charging time for the battery is 30minute.

When the screwdriver is in motion and consumes 100A for more than 200ms, then protection function in battery will be automatically activated and the screwdriver will be auto stopped. Low Power Capacity Protection is available, when there is 16.5V (20% power reminds) left in battery, red light will continuously blinking with short buzz alert. When there is 16V (10% power reminds) left in battery, red. Temperature Protection protect the battery from over temperature, PCB can detect temperature and when control board reaches 80∘C, screwdriver will auto stop until temperature is below 70 ∘C.
