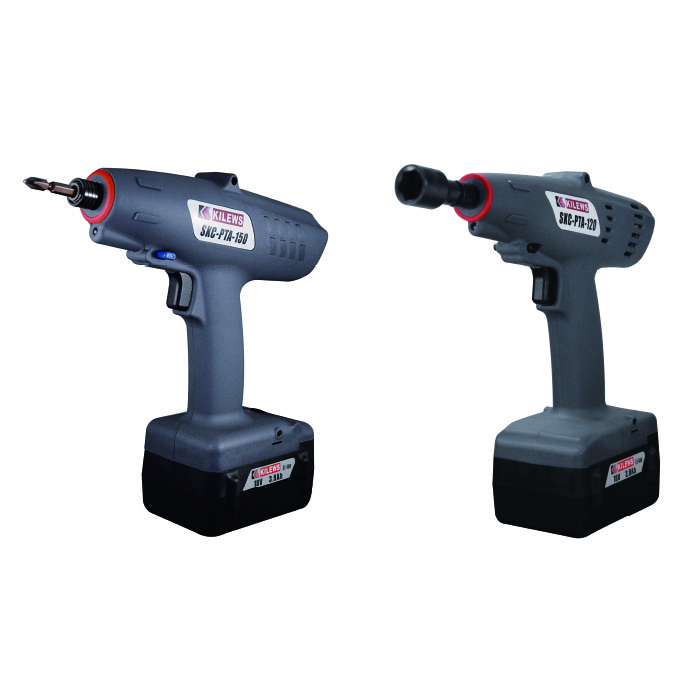

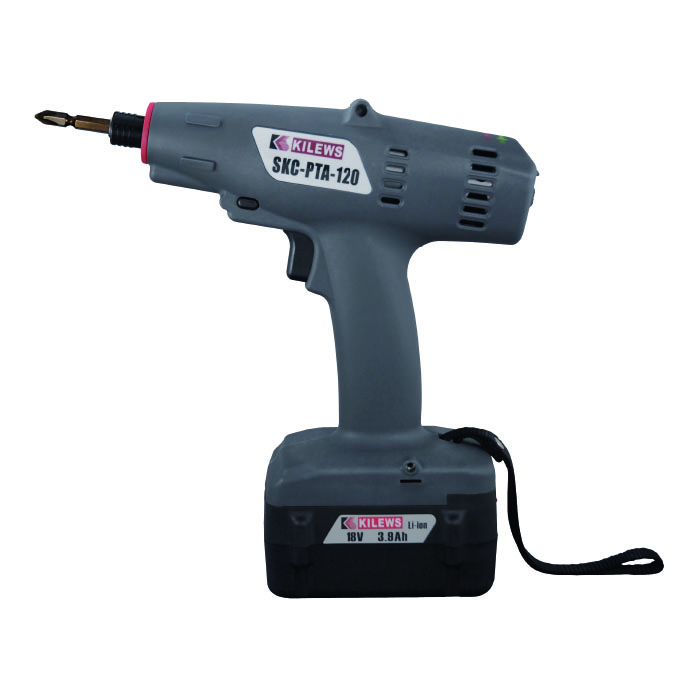

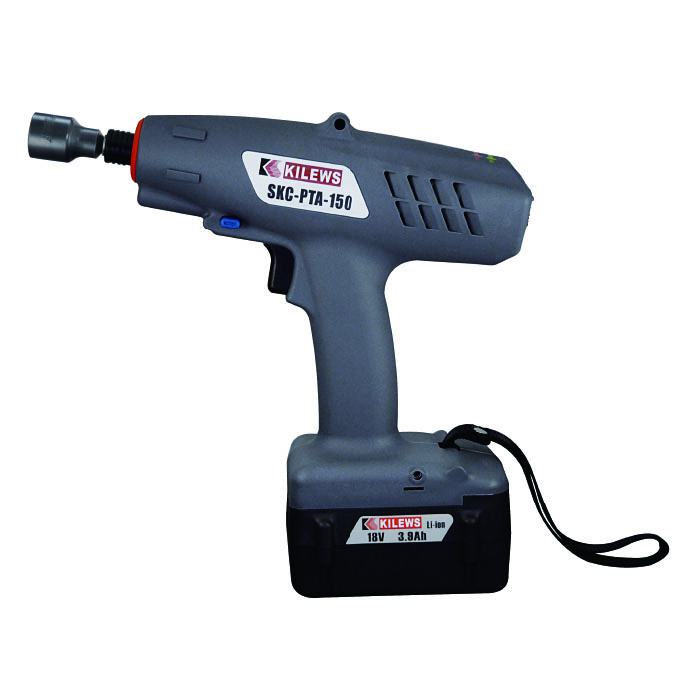

SKC-PTA-220/150/120/80
- The high power brushless motor was researched, developed and produced by Kilews, with 2 years warranty.
- The best choice of industrial assembly tool which can set the maximum torque up to 22 N.m, and the repeatable torque accuracy within ±3%.
- Adopting Japanese high performance Li-ion (Li-Mn) battery which has longest standby time and lifetime.
- The cordless battery screwdriver has beep alarm warning when the battery power capacity is low. The red LED will flicker when 20% left of battery power capacity and light up continuously when 10% left of battery power capacity. User can be reminded to replace the battery by the LED warning light.
- The cordless battery screwdriver has built-in indicating light to indicate the fasten procedure during operation. The green LED will light up and give a short beep for every fastening screw. Conversely, the red LED will light up and give a long beep if the screw is fastened incorrectly or NG.
- LED illumination, LED will light up while screwdriver is operating to help user to see the fastening object status and to make sure the screws are aimed to exact positions.
- Users can select HI/LO speed via the electrical switch to meet the operation requirement.
- In order to hold the cordless battery screwdriver comfortably, the shape is designed to be 10 degrees elevation and balanced as an excellent ergonomic design.

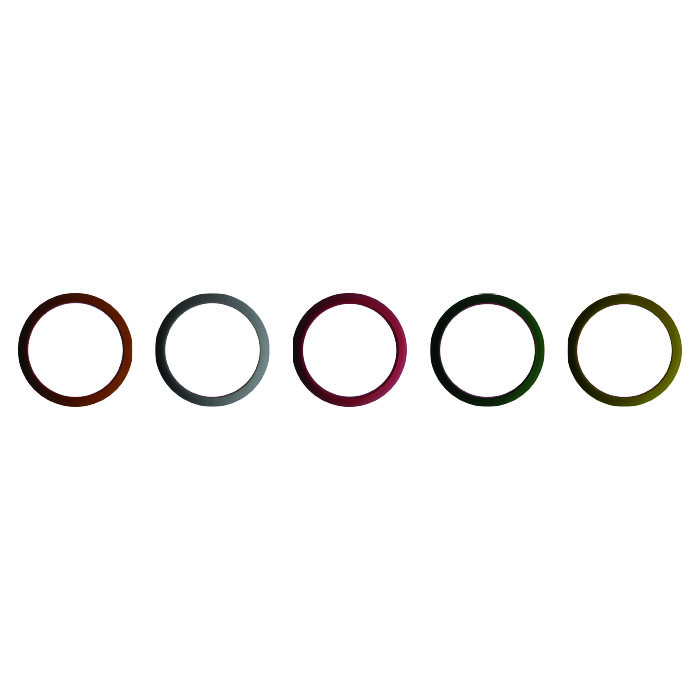

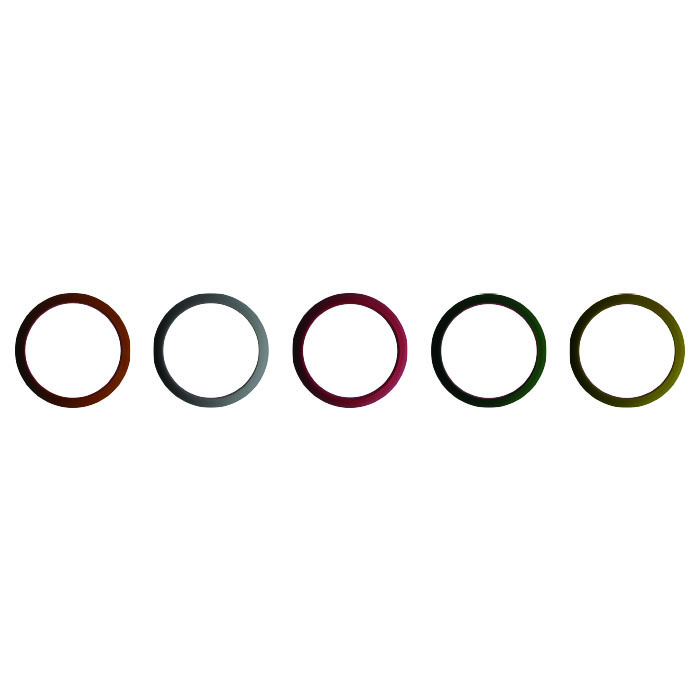

- Torque Identification Rings are attached to distinguish the torque with different colors after the user adjusted the torque.
- In order to extend battery operating time, the cordless battery screwdriver will tum to sleep mode automatically when it idled over 3 seconds. Sleep mode helps to save power and extend battery life time.
- Due to the strong fasten torque, we have also included side pistol grip to maintain operating security.
SKC-PTA-220/150/120/80
Product Spec
Model | SKC-PTA-120 | SKC-PTA-80 | SKC-PTA-220 | SKC-PTA-150 | |
Input Voltage | 18V | ||||
Torque (N.m) | 6-12 | 4-8 | 8-22 | 4-15 | |
Repeatable Torque Accuracy | ±3% | ||||
Torque Adjustment | Intermal Stepless | ||||
Free Speed (r.p.m) ±10% | HI | 720 | 1200 | 350 | 600 |
LO | 450 | 780 | 200 | 380 | |
Weight (kg) | 1.0 (Without Battery) | 1.2 (Without Battery) | |||

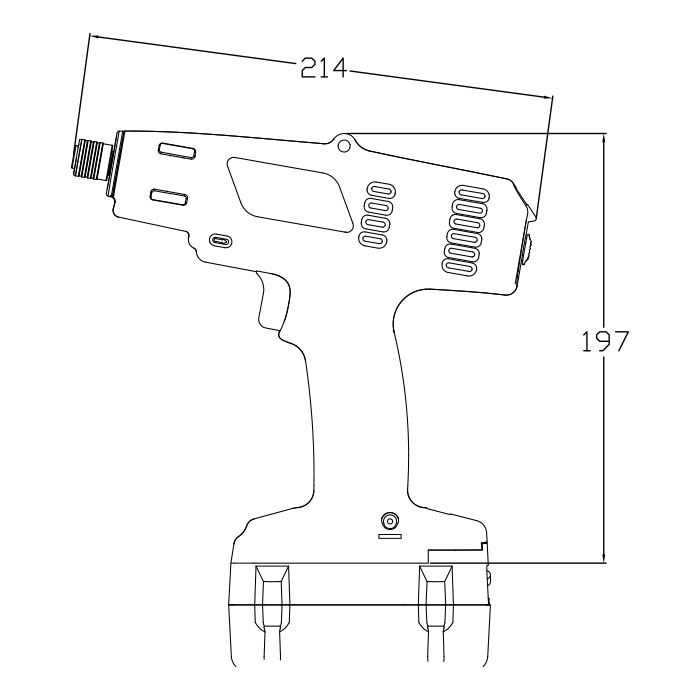

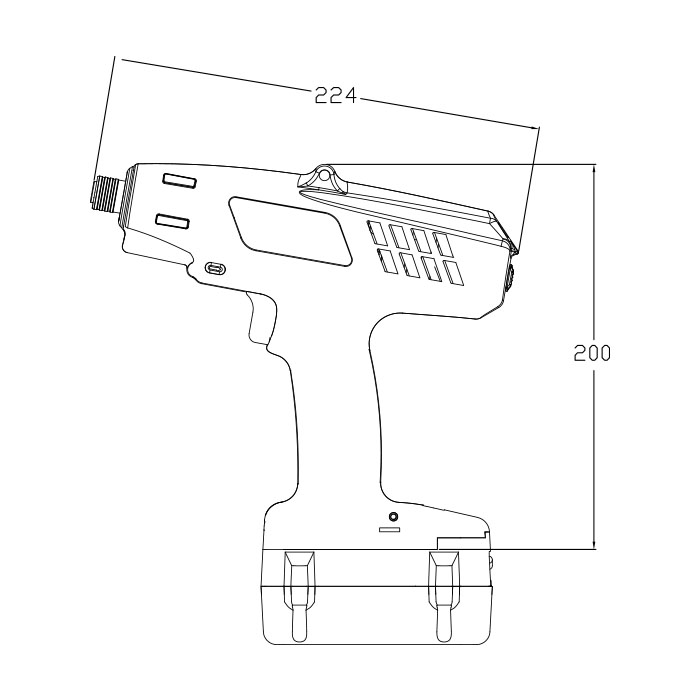

Size (mm) | 214*197 (L*H Without Battery) | 224*200 (L*H Without Battery) | |||
Applicable Battery | SKC-LB1820,SKC-LB1840 | SKC-LB1840 | |||
Applicable Charge Station | SKC-P120W/SKC-P80W/SKC-80W | ||||
Applicable Torque Meter | KTM-150 | KTM-250 | |||
Applicable Bit Type |

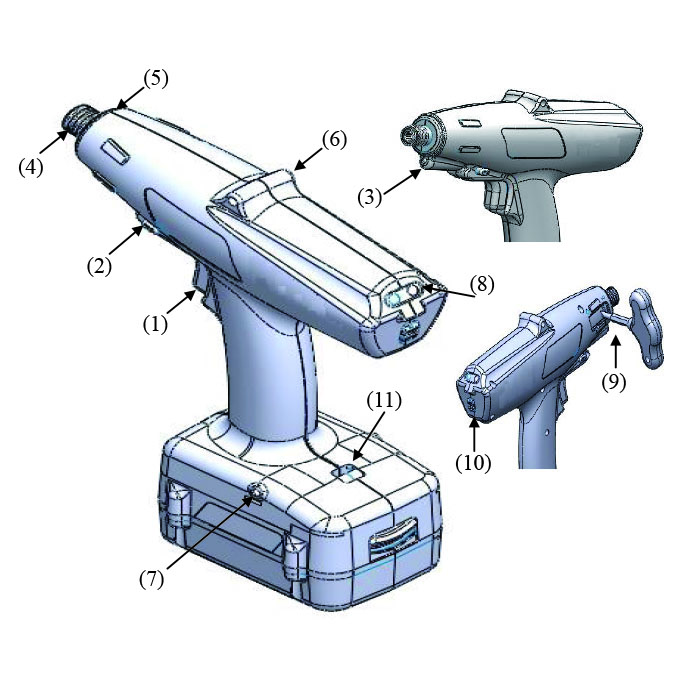

Function Name Table
No. | Deseription | No. | Deseription |
(1) | Trigger Switch | (7) | Switch Hook |
(2) | Forward/Reverse Lever | (8) | Indiction Light |
(3) | LED Light | (9) | Torque Wrench |
(4) | Bit Sleeve | (10) | Speed Adjustment |
(5) | Torque Ring | (11) | Wrist Strap Hole |
(6) | Driver Hook Hole |
