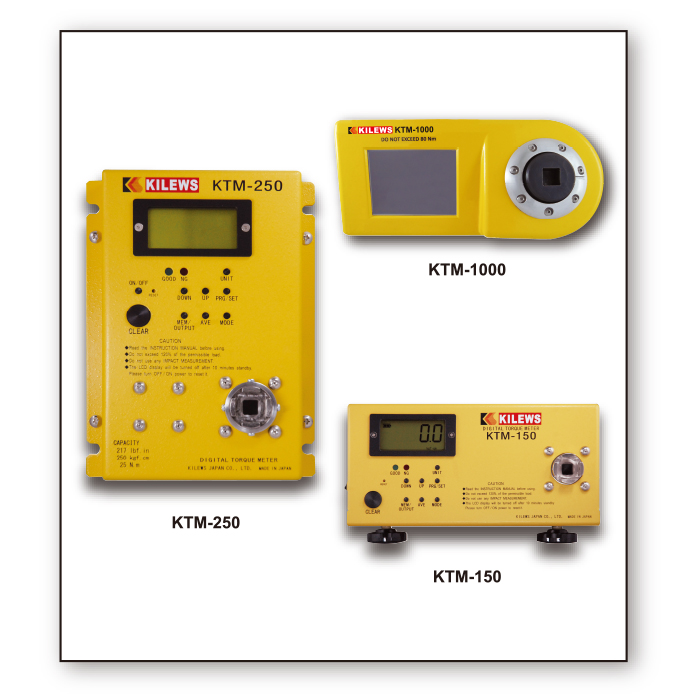

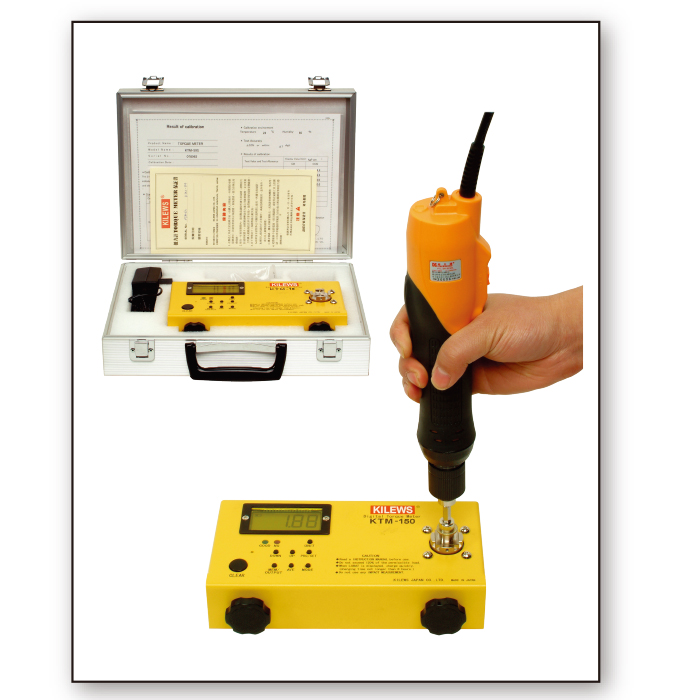

KTM-15/150/250/1000

  • The torque meters are directly produced in Japan, authorized by Kilews Industrial Co., Ltd. ODM. Each product will be provided with an Adjustment Certificate and one year Warranty in normal using. Take Note! These measuring instruments could not be applied in testing the pneumatic screwdriver products and prohibited in measuring the torque exceeding maximum measuring range of torque meters.
  • Led can identify the test range of torque setting by needed user. If the result is not complying to torque range setting Light will be warred.
  • USB connector is only used for data output : it is convenient for user to work with computer.
  • Auto-zero can be selected and zero reset becomes unnecessary for user.
  • Automatically test values about maximum, minimum and mean.

KTM-15/150/250/1000


Product Spec

Model KTM-250 KTM-150 KTM-15 KTM-6 KTM-50S
Measuring Ranges (kgf.com) 3.0~250.0 1.5~150.0 0.15~15.0 0.020-6 1-50
(Lbf.in) 3.0~217.0 1.5~130.0 0.15~13.0 0.020-5.4 1-45.00
(N.m) 0.30~25.00 0.15~15.0 0.015~1.500 0.002-0.6 0.1-5.00
Accuracy ±0.5%
Power Supply 4.8VDC(Ni-MH chargeable battery 1.2VX4 cell 1650mAh) 1.2V batteryX5
Charging Time From empty -3 hours With in 8 hours
Operation Time About 12 hours
Battery Life Chargeable for 300 time or more. However, it varies depending on operating conditicns.
Size(mm) 160(W)X210(D)X45(H) 230(W)X125(D)X65(H) 160(W)X125(D)X55(H) 123(W)X230(D)X65(H)
Weight(kg) 2 1.8 1.2 2
Exclusive Charger Input : AC100v~240V 50/60Hz Output : DC12V 500mA Input: AC120V, 220-240V
Accessory Torque measuring
adaptorX1
AJ-250
Torque measuring
adaptorX3
AJ-150/AJ-50/AJ-15K
Torque measuring
adaptorX2
AJ-15/AJ-3
Torque measuring
adaptor X1
SJ-3
Torque measuring
adaptor X1
J-50S
