SKD-RBK/SKD-LRBK/ SKD-RBNK
(Apply for torque display series)

  • Whole series use brushless motor, no carbon pollution, and low noise motor operation. It is the best fit for assembling power torque products.

  • Assemble large-sized LED/LCD panel and home appliances. Tools can be hanged with spring balancer to lessen work fatigue.

  • SKD-RBK series torque range can reach up to 2-50 N.m; SKD-RBK series torque range can replace pneumatic screwdriver to avoid unstable torque due to the fluctuation of the air pressure. Also can prevent oil and noise pollution and achieve energy saving and more Eco-friendly.

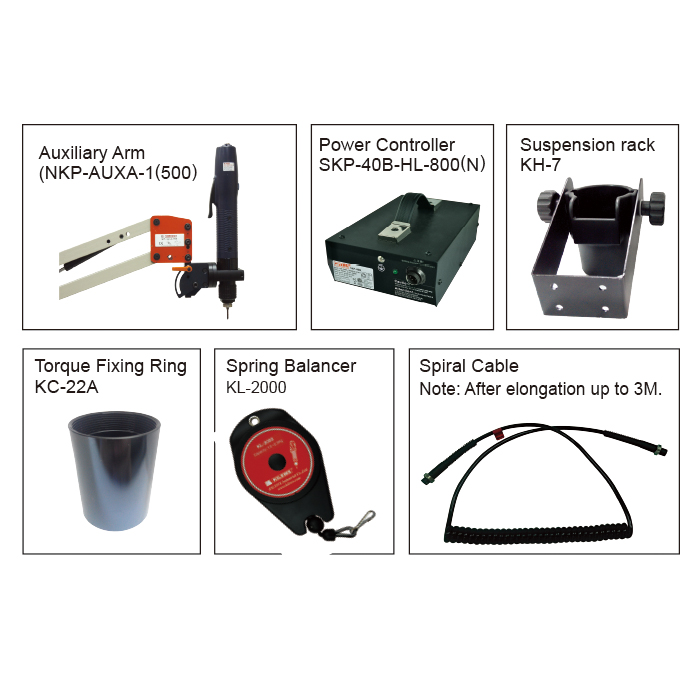

  • SKD-RBK series must be collaborated with Auxiliary Arm, which can increase stable torque output, torque precision, and easier for user to operate.

  • Suitable for assembling large-scale work pieces in semi-automatic or full automatic assembly line. In particular, the most suitable for applications such as automotive industrial parts assembly, air conditioning, electricity, telecommunications, large appliances and medical equipment assembly.

  • Highly mobility, easy to operate, stable torque, high efficiency. Motor can be free from fatigue under long-working hours.

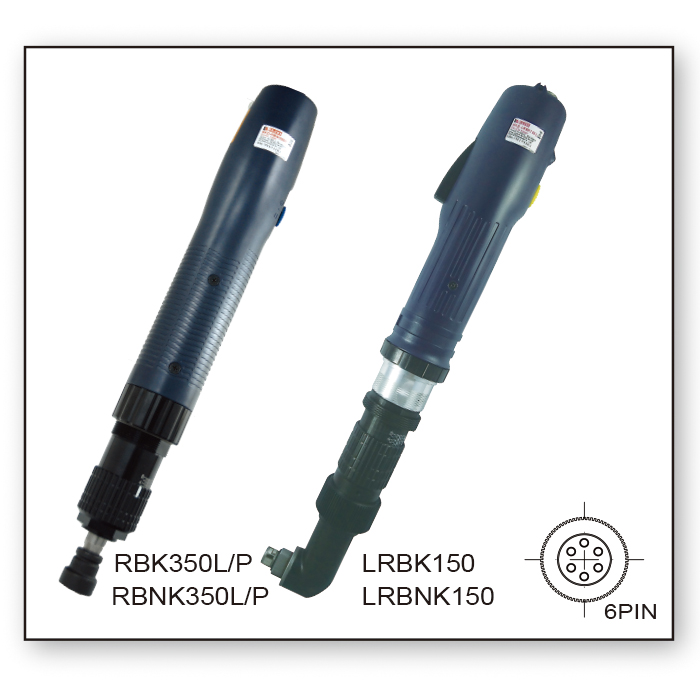

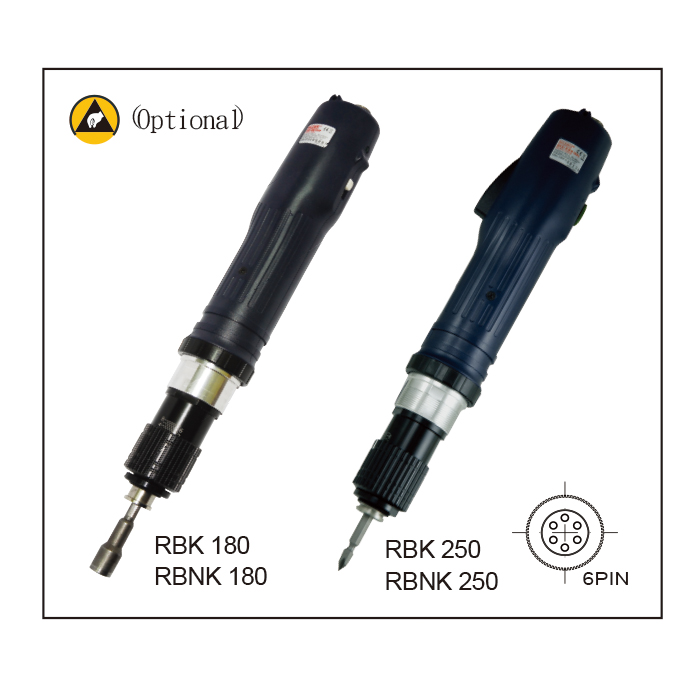

SKD-RBK/RBNK/LRBK Series



Product Spec

Model SKD-RBK60L/P SKD-RBK90L/P SKD-RBK120L/P SKD-RBK120LF/PF SKD-RBK180L/P SKD-RBK180LF/PF SKD-RBK250L/P
SKD-RBNK60L/P SKD-RBNK90L/P SKD-RBNK120L/P SKD-RBNK120LF/PF SKD-RBNK180L/P SKD-RBNK180LF/PF SKD-RBNK250L/P
Input Voltage DC40V
Power Consumption 100W 120W 120W 150W 150W 150W 150W

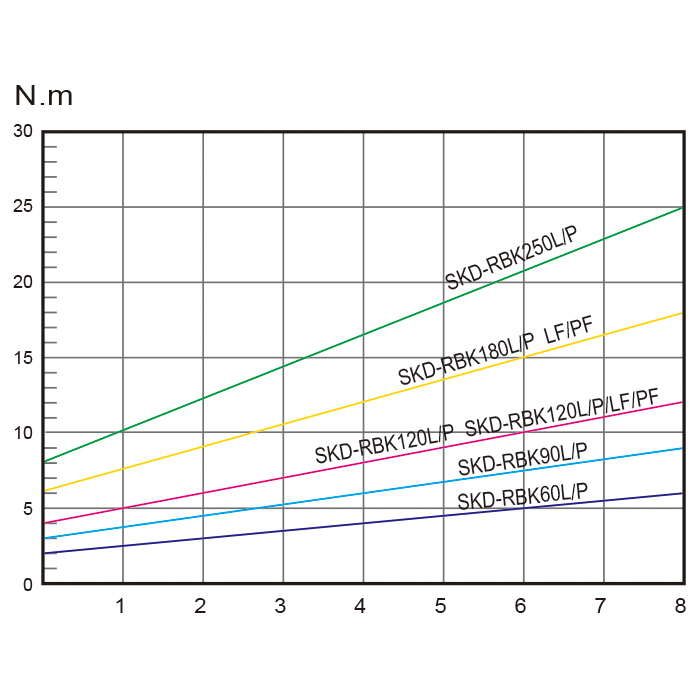

2~6 3~9 4~12 4~12 6~18 6~18 6~25
Repeatable Torque Accuracy(%) ±5%
Torque Adjustment Stepless
Free Speed (r.p.m) HI 1200 900 600 880 370 600 370
LO — — — — — — —
Screw Size Dia (mm) Machine Screw 4.0~5.0 5.0~6.0 ≦8 ≦8 ≦10 ≦10 ≦10
Tapping Screw ≦4 ≦4.5 ≦6 ≦6 ≦8 ≦8 ≦8
Weight(g) 1.25

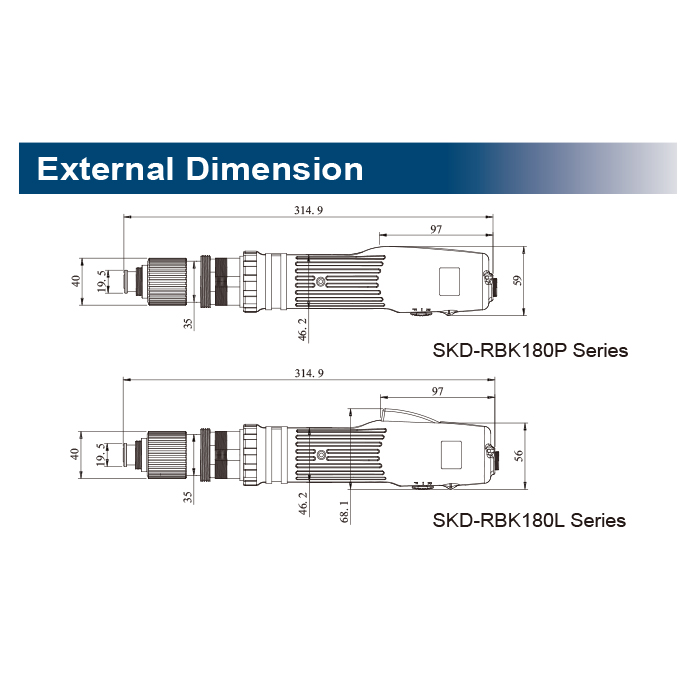

Length(mm) 315
ESD(Anti-Static) V(with black housing)
CE V
CCC V
RoHS V
Auxiliary Arm V
Handle Grip V
Power Consumption SKP-40B-HL-800(N)
Bit Type 　

Model SKD-RBK250LF/PF SKD-RBK350L/P SKD-RBK500L/P SKD-LRBK50 SKD-LRBK75 SKD-LRBK100 SDK-LRBK100F SKD-LRBK150F SKD-LRBK150 SKD-LRBK220
Input Voltage DC40V DC40V
Power Consumption 150W 150W 150W 100W 120W 120W 150W 150W 150W 150W

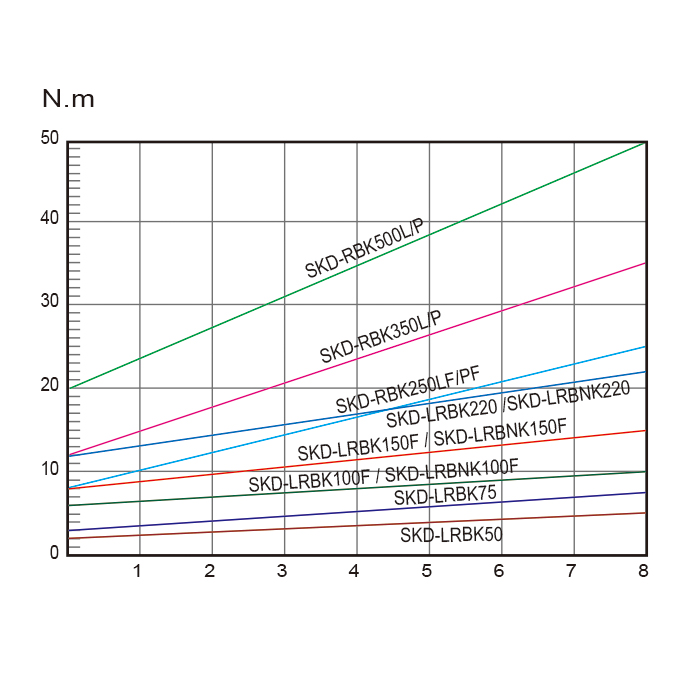

Torque(N.m) 8~25 12~35 20~50 2~5 3~7.5 6~10 6~10 8~15 8~15 12~22
Repeatable Torque Accuracy(%) ±5% ±5%
Torque Adjustment Stepless Stepless
Free Speed (r.p.m) HI 500 350 200 1000 800 550 880 600 350 350
LO — — — — — — — — — —
Screw Size Dia (mm) Machine Screw ≦10 ≦12 ≦14 ≦5 ≦6 ≦8 ≦8 ≦10 ≦10 ≦10
Tapping Screw ≦8 ≦10 ≦12 ≦4 ≦4.5 ≦6 ≦6 ≦8 ≦8 ≦8
Weight(g) 2.2 2.5 2.5

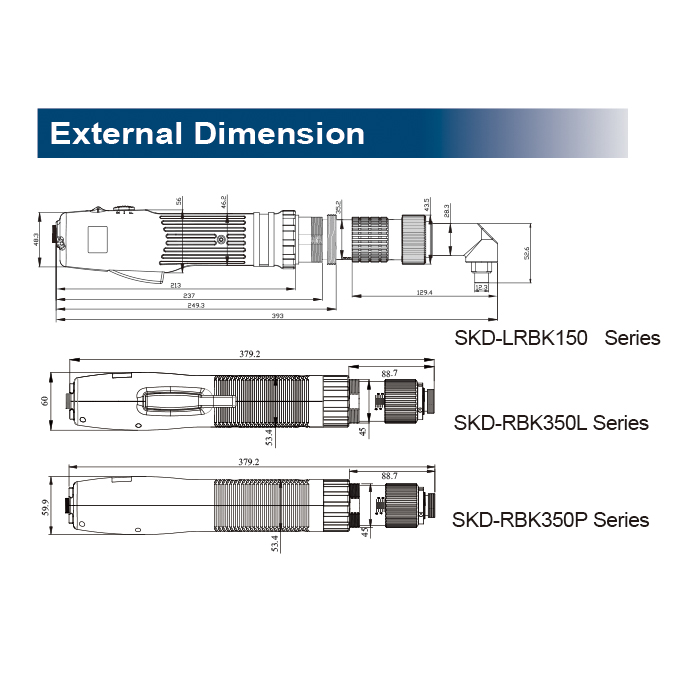

Length(mm) 380 393
ESD(Anti-Static) —
CE V
CCC V
RoHS V
Auxiliary Arm V
Handle Grip V
Power Consumption SKP-40B-HL-800(N)
Bit Type 　 　 　
